CIRCOLIT<sup>®</sup>-Powder

CIRCOLIT®-Powder

Multifunctional Minerals

  1. Home
  2. Multifunctional minerals
  3. CIRCOLIT®-Powder

Inspired by the CSH mineral xonotlite (6 CaO x 6 SiO2 x H2O) , which was first discovered in Mexico, its exact crystal structure is synthetically reproduced here.

Again, nature is the very definition of the innovative teacher here.

  • Starting with a very bright whiteness, CIRCOLIT®-Powder contains almost no quartz residue; the abrasion values are very low.
  • Its defined crystal structure and the special grinding technique provide an unusually pronounced rod shape. Additionally CIRCOLIT®-Powder has a high degree of inner porosity as well as the high specific surface.
  • The multifunctional product is used in many various applications.
Paint and Varnish Paint and Varnish Paint and Varnish
CIRCOLIT®-Slurry - with multifunctional properties

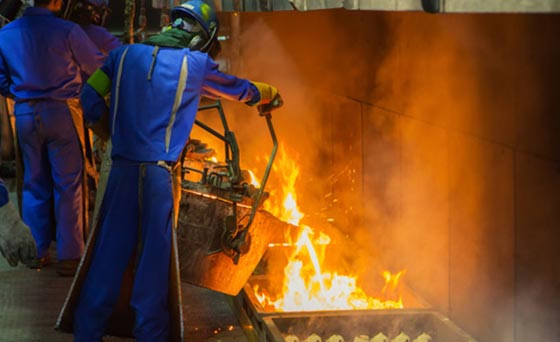

High Temperature Application High Temperature Application High Temperature Application
CIRCOLIT® and CIRCOSIL® – refractory Calcium-Silicate-Hydrates

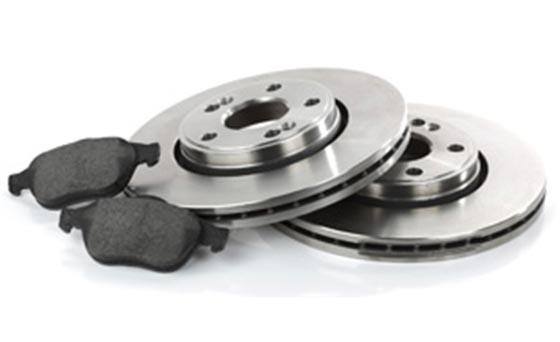

Friction Pad Friction Pad Friction Pad
CIRCOLIT®-Powder - synthetic needle structure
Paper and Coating Colours Paper and Coating Colours Paper and Coating Colours
CIRCOLIT® - multifunctional coating pigment and filler
Dr. Attila Dal
Chief Executive Officer - Friction Coating
Dr. Attila Dal
Dr. Dennis Lewing
Productmanager - Paint and Varnish
Dr. Dennis Lewing
Dipl.-Ing. Michael Plattl
Productmanager - Paper and Coating
Dipl.-Ing. Michael Plattl

General technical details

Chemical composition 6 CaO x 6 SiO2 x H2O
Calcium Silicate Hydrate		 Specific surface (BET) 35 m2/g
SiO2 45,18 % CaO 46,08 % Hg fillable porosity 1,965 cm3/g
Al2O3 0,33 % MgO 0,52 % Density 2,47
Fe2O3 0,13 % Na2O < 0,02 % pH value DIN ISO 787/9 < 11
Mn < 0,001 % Cr < 0,001 % Water soluble component ISO 787/3M.-%
 0,18
Mineral composition Xonotlit Glow loss 10,0 %
Crystal form stäbchenförmig
Aspect ratio l/d ca. 20
Whiteness (ISO 2410 R 457) with UV 92,5
Brightness (CieL*a*b*) L* = 96
a* = 0,17
b* = 0,92

Particle sizes

Typical analysis; Measurement with laser granulometry (Cilas 1064) Reibbeläge Partikelgrößen
CIRCOLIT®-Pulver
d50 [µm] 9,0
d97 [µm] 38,0

CIRCOLIT®- Deliverable as


  • Paper sacks up to 12.5 kg
  • On CP1 Pallet (industrial pallet)
  • On CP1 Pallet (industrial pallet)
  • 625 kg per pallet
  • Special packing in Big-Bags to approx. 250 kg or
    Q-Bags to approx. 500 kg on CP1 industrial pallet
  • Other forms of packaging
    such as use of weighed shrink bags for dust-free handling in company if possible on request.
    L x B x H: 80 cm x 120 cm x approx. 180 cm
